Shrink Systems

Shrink System All-In-One

48ST-110VSS-76STSS-77STPower Supply110V / 1 PH / 20 AMPS220V / 1 PH / 25 AMPS220V / 1 PH / 30 AMPSWatts1650W3000W3000W. Seal Dimensions 12”W x 18.5”L 16”W x 22”L 20”W x 30”L. Machine Dimensions 50”L x 26”W x 45”H 56”L x 30”W x 45”H 72”L x 35”W x50”H Max Film Width 20”24”28” Max Package Height 6”8”10” Production Rate 3-5 PPM 3-5 PPM 3-5 PPM Weight 270-LBS 350-LBS 400-LBS • Compact size • Micro Knife Technology Seals PVC or POF • Magnetic Hold Down • Dual Mode Switch (Seal only or Seal & Shrink) •

Shrink Tunnel Floor Model

Fully Re-Circulating Shrink Tunnel • 4 Direction Air Flow for Best Possible Shrink Results • State of the Art AC Variable Speed Conveyor 0-30 FPM • Live Roller Rod Conveyor Provides Best Shrink Results • Automatic Cool Down and Shut Off Extends Heater Life • Solid State Digital Temperature Control • Locking Casters • 12ft Power Cord•1-Year Warranty

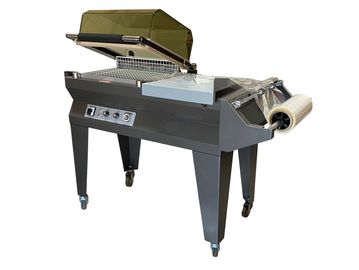

L Sealer Table Top With Film Unwind Model LC

SEAL SIZE 13” X 19”

MAX FILM WIDTH 22”

PACKAGE HEIGHT 8” AND 12”

PACKAGING SPEEDS 8-12 PACKAGES PER MINUTE

MICRO KNIFE TECHNOLOGY

TUNNEL FEATURES RE-CIRCULATING AIR CHAMBER AND ROD CONVEYOR

AUTOMATIC COOL DOWN AND SHUTOFF

AVAILABLE IN 110 VOLT/1 PHASE /20 AMPS OR 220 VOLT/1 PHASE/45 AMPS

L-BAR MAGNET HOLD THROUGH SEAL CYCLE

POWER DISCHARGE CONVEYOR

TUNNEL DIMENSIONS 20” X 16” X 6” (OPTIONAL 8”)

MACHINE DIMENSIONS 76”L x 24” W x 50” H

MACHINE WEIGHT 460 LB

L SEALER SHRINK TUNNEL COMBINATION SYSTEM SS1519CMC Kk7A24Y
